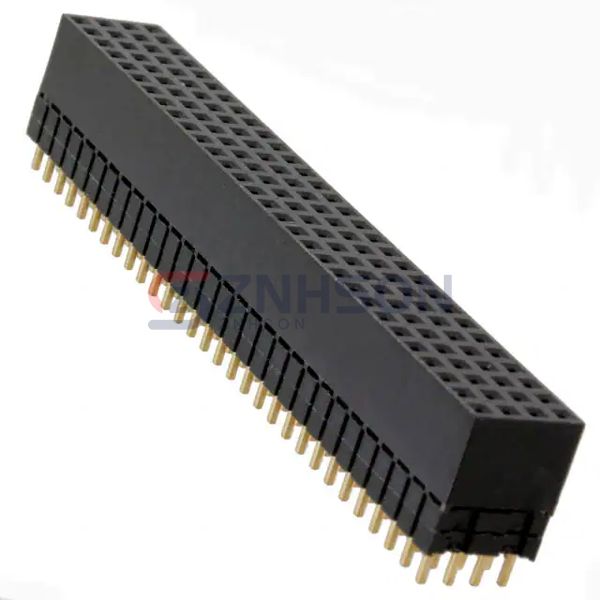

M22-6013005

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

CONN NON-STKTHR PC/104+ 120P PCB

Datasheet:

M22-6013005 Datasheet

$16.98

Available to order

Reference Price (USD)

$13.23000

18+

$12.02778

27+

$11.72741

54+

$10.82519

108+

$10.22380

252+

$9.32171

504+

$8.72030

1,008+

$7.99862

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The M22-6013005 from Harwin Inc. is a state-of-the-art Backplane Connector - Specialized, delivering exceptional performance for high-speed data transmission. Built to last, this connector offers superior durability and precision, ensuring reliable connections in any environment. Its advanced design meets the highest industry standards. Backplane Connectors - Specialized such as the M22-6013005 are designed for high-density and high-frequency applications. Featuring gold-plated contacts and robust housings, these connectors minimize signal loss and EMI. The M22-6013005 also includes ergonomic features for easy handling and installation. Applications for the M22-6013005 include telecommunications, industrial machinery, and transportation systems. It is commonly used in base stations, CNC machines, and railway signaling systems where performance and reliability are paramount. Its rugged design also makes it ideal for outdoor and extreme-condition applications.

Specifications

Product Status: Active
Connector Usage: -
Connector Type: Non-Stackthrough, Unkeyed (PC/104)
Connector Style: PC/104 Plus
Number of Positions: 120
Number of Positions Loaded: All
Pitch: 0.079" (2.00mm)
Number of Rows: 4
Number of Columns: -
Mounting Type: Through Hole
Termination: Solder
Contact Layout, Typical: -
Features: -
Contact Finish: Gold
Contact Finish Thickness: 3.00µin (0.076µm)
Color: Black

Shopping cart

M22-6013005

Reference Price (USD)

Specifications

Related Products

76165-5608

516-038-501-146

85822-101LF

6450172-1

70232-113LF

516-020-500-226

2007793-1

1926721-2

516-038-501-150

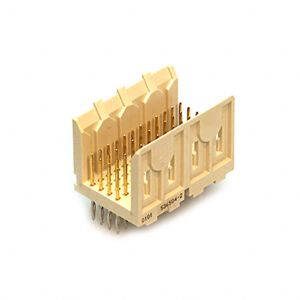

536504-2
