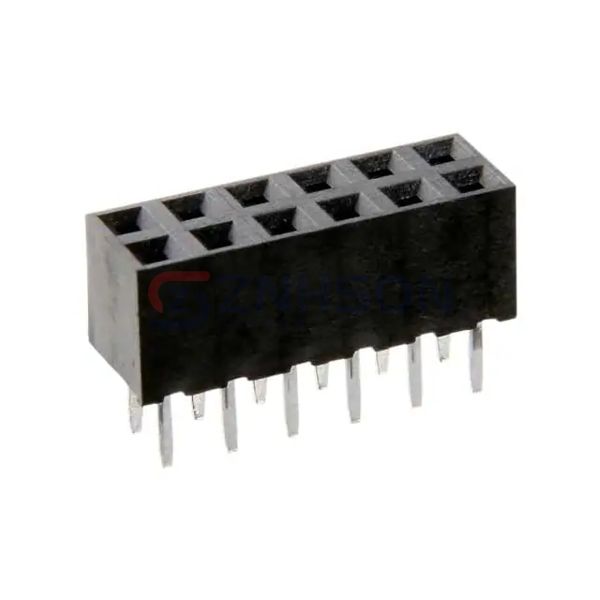

M22-7141342
Harwin Inc.
Harwin Inc.
CONN RCPT 26POS 0.079 GOLD PCB
$2.30
Available to order
Reference Price (USD)
2,001+
$1.79480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the M22-7141342 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are engineered for high durability, efficient signal transmission, and easy installation. Perfect for applications in automotive systems, medical devices, and data centers, they ensure stable connections under varying conditions. With features like corrosion-resistant materials and secure locking mechanisms, Harwin Inc. connectors are the go-to choice for professionals. Common uses include server backplanes, control panels, and handheld devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 26
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.173" (4.40mm)
- Contact Length - Post: 0.094" (2.40mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 2A
- Voltage Rating: 500VAC
