M300-MV10345M1
Harwin Inc.
Harwin Inc.

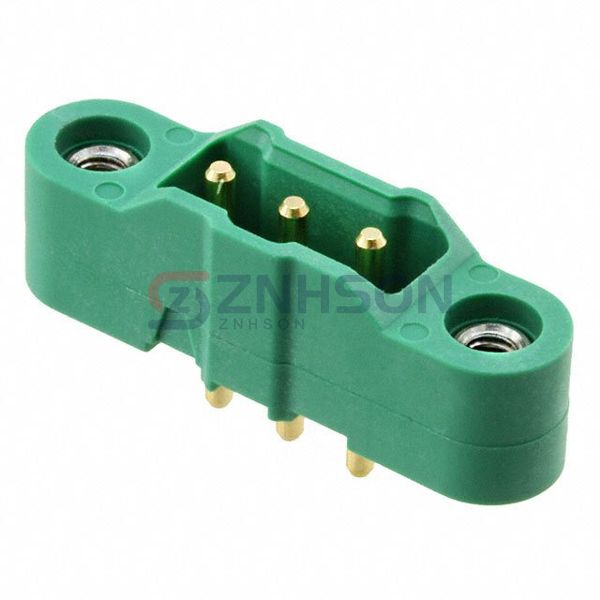

CONN HEADER VERT 3POS 3MM
$6.11
Available to order
Reference Price (USD)
1+
$5.00000
12+
$4.79500
108+
$3.99602
504+
$3.39661
1,008+
$2.89710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the M300-MV10345M1 rectangular connector header from Harwin Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the M300-MV10345M1 is perfect for automotive, industrial, and consumer electronics. Harwin Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.276" (7.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Mating Flange
- Operating Temperature: -65°C ~ 175°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 10A
- Voltage Rating: 600VAC/DC
