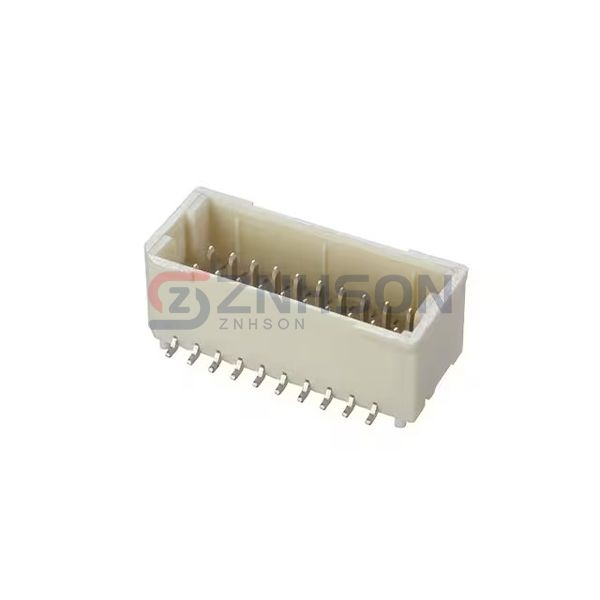

M40-3021546
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 30POS 1MM
$2.58
Available to order
Reference Price (USD)
1+
$2.22000
10+
$2.01900
100+
$1.73040
500+
$1.44200
1,000+
$1.23600
5,000+
$1.09592
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the M40-3021546 rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the M40-3021546 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.171" (4.35mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Cream
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Samtec Inc.
MPTC-02-16-02-01-01-L-RA-SD
Molex
0416620001
Sullins Connector Solutions
SBH51-LPSE-D10-SP-BK
Sullins Connector Solutions
PBC03DAEN
Preci-Dip
804-V3-018-12-002101
Molex
0423751856
Hirose Electric Co Ltd
DF3A-11P-2DS
Molex
0713085676

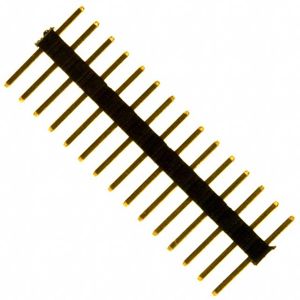

Sullins Connector Solutions
SMH100-LPSE-S15-ST-BK

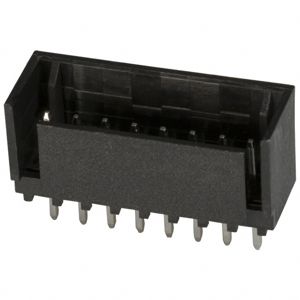

TE Connectivity AMP Connectors
