M40-6202546R
Harwin Inc.
Harwin Inc.
CONN RCPT 25POS SMD TIN
$2.06
Available to order
Reference Price (USD)
1,000+
$1.70230
2,000+
$1.64360
3,000+
$1.58490
5,000+
$1.52620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the M40-6202546R rectangular connector by Harwin Inc.. Designed for mezzanine (board-to-board) applications, this connector ensures optimal performance in high-density configurations. Its edge-type design facilitates easy installation and secure mating, making it a preferred choice for engineers. These connectors excel in environments requiring robust and repeatable connections, such as military communications, industrial robotics, and renewable energy systems. Specific use cases include embedded computing modules and automated test equipment. With M40-6202546R, you get a dependable connector that meets the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Outer Shroud Contacts
- Number of Positions: 25
- Pitch: 0.039" (1.00mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Solder Retention
- Contact Finish: Tin
- Contact Finish Thickness: 80.0µin (2.03µm)
- Mated Stacking Heights: 4.3mm
- Height Above Board: 0.130" (3.30mm)
Related Products
Samtec Inc.
SEAM-30-07.0-L-06-2-A-K-TR
Samtec Inc.
SEAM-20-03.5-L-10-1-A-K-TR
Samtec Inc.
ERM8-060-05.0-S-DV-EGP-K-TR
Samtec Inc.
QTH-090-03-L-D-K-TR
Samtec Inc.

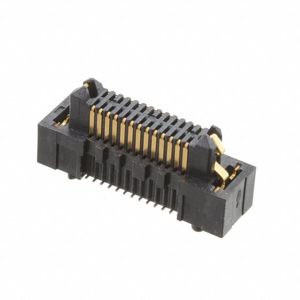

ERM8-013-05.0-S-DV-L-TR
Samtec Inc.

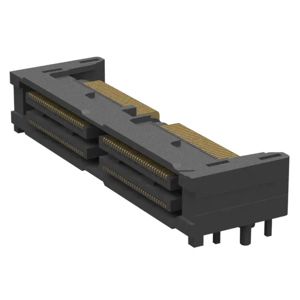

QSH-060-01-L-D-RA
Panasonic Electric Works

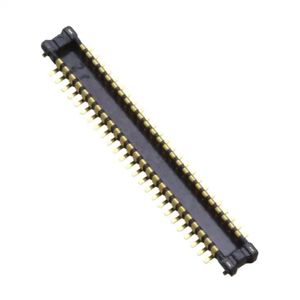

AXE650224
Molex

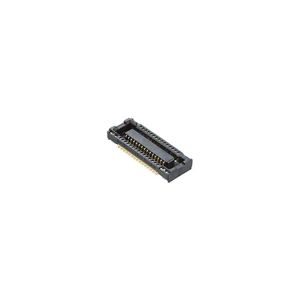

51338-2274
Hirose Electric Co Ltd

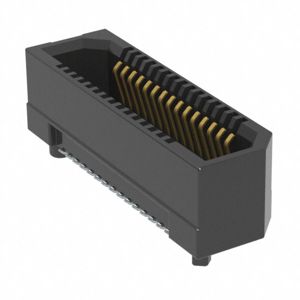

ER8-30S-0.8SV-5H
