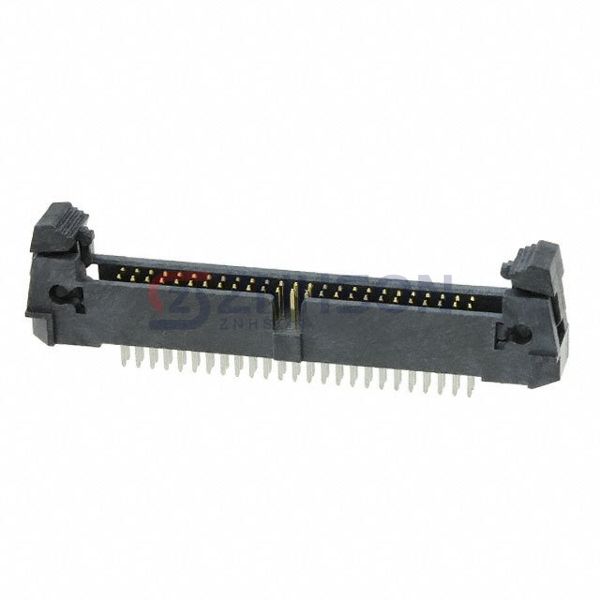

M50-3552542
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 50POS 1.27MM
$4.78
Available to order
Reference Price (USD)
1+
$3.75000
12+
$3.60250
108+
$3.00204
504+
$2.55171
1,008+
$2.17645
5,004+
$1.95130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M50-3552542 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: 0.351" (8.92mm)
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.75A per Contact
- Voltage Rating: -
