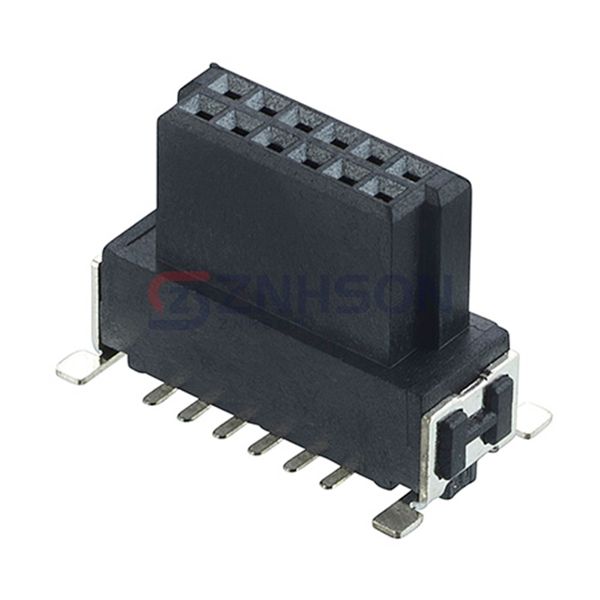

M55-6011242R
Harwin Inc.
Harwin Inc.
CONN RCPT 12POS 0.05 GOLD SMD
$1.90
Available to order
Reference Price (USD)
400+
$1.06020
800+
$0.94860
1,200+
$0.83700
2,000+
$0.80910
2,800+
$0.78120
10,000+
$0.72540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M55-6011242R Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Harwin Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Insulation Color: Black
- Insulation Height: 0.356" (9.05mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 10.8mm, 12.3mm, 13.9mm
- Ingress Protection: -
- Features: Board Guide, Pick and Place, Solder Retention
- Current Rating (Amps): 1.2A
- Voltage Rating: 100VAC
Related Products
Preci-Dip
831-87-028-30-001101
Samtec Inc.
SFM-145-02-S-S-A
Mill-Max Manufacturing Corp.
310-43-153-41-105000
Mill-Max Manufacturing Corp.
316-41-119-41-006000
Samtec Inc.
SQW-149-01-L-D-VS-A
Samtec Inc.
BKS-135-01-L-V
Samtec Inc.
RSM-115-02-F-S
Preci-Dip
831-87-040-20-001101
Preci-Dip

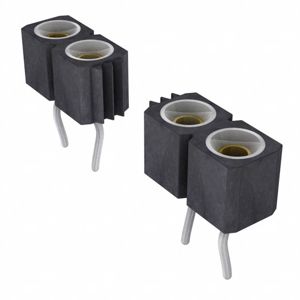

310-87-164-01-666101
