M55-6023242R
Harwin Inc.
Harwin Inc.
CONN RCPT 1.27MM SMD 32POS
$3.19
Available to order
Reference Price (USD)
1+
$3.19000
500+
$3.1581
1000+
$3.1262
1500+
$3.0943
2000+
$3.0624
2500+
$3.0305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with M55-6023242R Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Harwin Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 32
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Insulation Color: Black
- Insulation Height: 0.537" (13.64mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 15.4mm, 16.9mm, 18.5mm
- Ingress Protection: -
- Features: Board Guide, Pick and Place, Solder Retention
- Current Rating (Amps): 1.2A
- Voltage Rating: 100VAC
Related Products
Preci-Dip
346-83-107-41-036101
Preci-Dip
801-83-038-10-001101
Samtec Inc.
CLM-120-02-L-D-A-K-TR
Samtec Inc.
CLM-116-02-L-D-P
Samtec Inc.

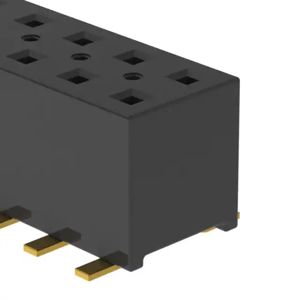

TLE-118-01-G-DV-P
Samtec Inc.
CLT-144-02-L-D-BE
Samtec Inc.

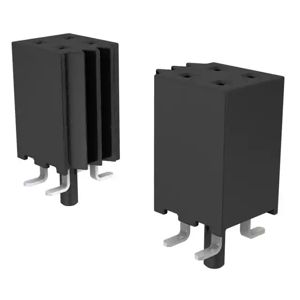

SQW-107-01-F-D-VS-A-P
Samtec Inc.

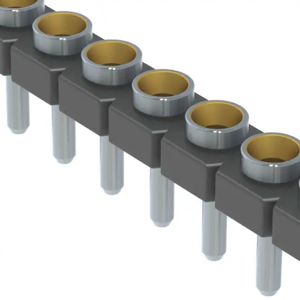

SL-108-T-32
Mill-Max Manufacturing Corp.

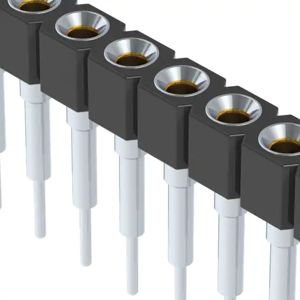

316-91-120-41-003000
