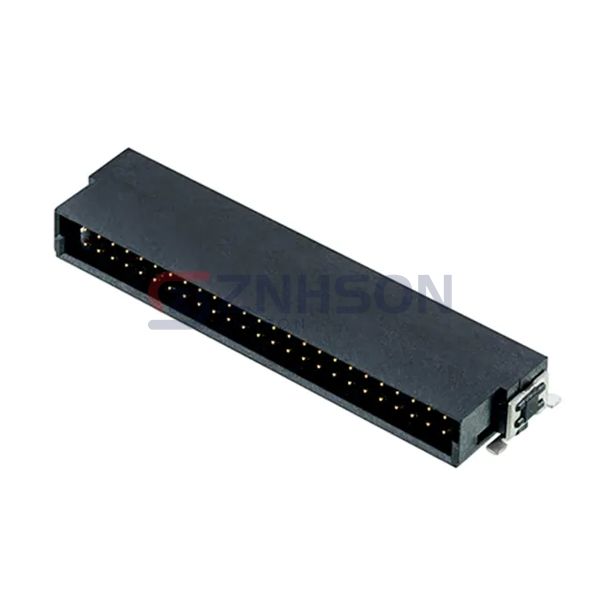

M55-7105042R
Harwin Inc.
Harwin Inc.
CONN HEADER SMD R/A 50POS 1.27MM
$2.65
Available to order
Reference Price (USD)
600+
$1.31250
1,200+
$1.12500
1,800+
$1.08750
3,000+
$1.05000
6,000+
$0.99750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M55-7105042R male pin header by Harwin Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Harwin Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: -
