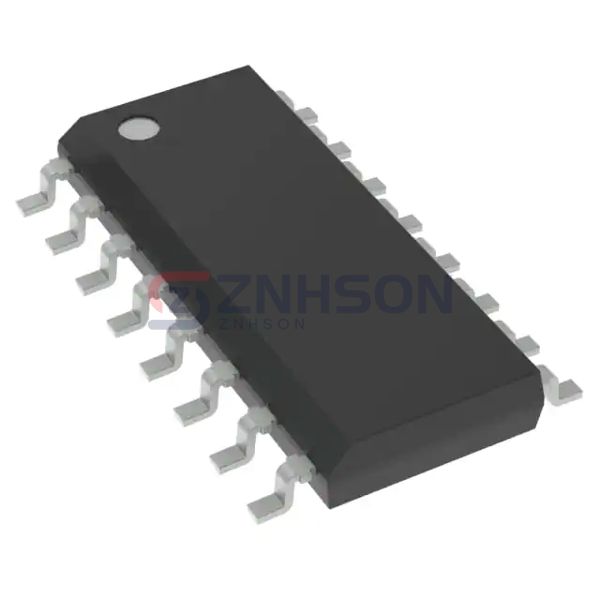

M74HC4053RM13TR
STMicroelectronics
STMicroelectronics
IC MUX/DEMUX TRIPLE 2X1 16SOIC
$0.00
Available to order
Reference Price (USD)
5,000+
$0.20250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with STMicroelectronics's M74HC4053RM13TR, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The M74HC4053RM13TR meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 2V ~ 6V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): 14ns, 26ns
- -3db Bandwidth: 200MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 2pF, 10pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -50dB @ 1kHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SO
