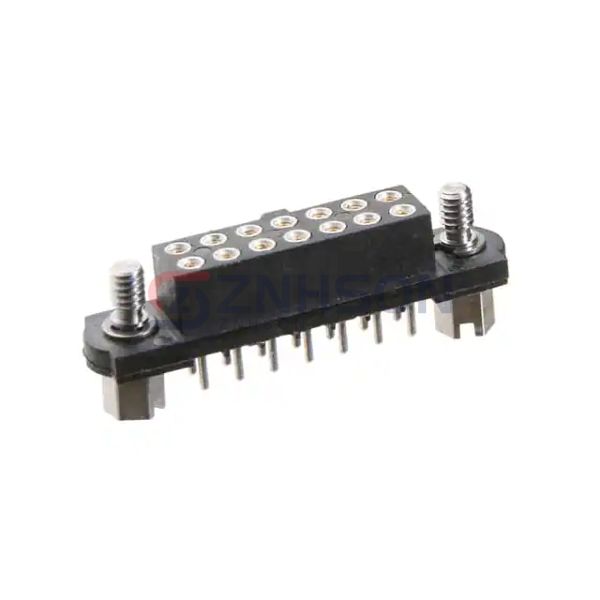

M80-4001842
Harwin Inc.
Harwin Inc.
CONN RCPT 18POS 0.079 GOLD PCB
$13.21
Available to order
Reference Price (USD)
99+
$10.98182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-4001842 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets provide reliable solutions for high-speed data and power transmission. With advanced shielding and low insertion force, these connectors are ideal for data storage, networking hardware, and gaming consoles. Their high-reliability design ensures performance in servers, routers, and VR systems. Harwin Inc. connectors are the preferred choice for engineers seeking quality and durability in high-tech applications.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.205" (5.20mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 7.3mm, 7.55mm
- Ingress Protection: -
- Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
- Current Rating (Amps): -
- Voltage Rating: 120V
