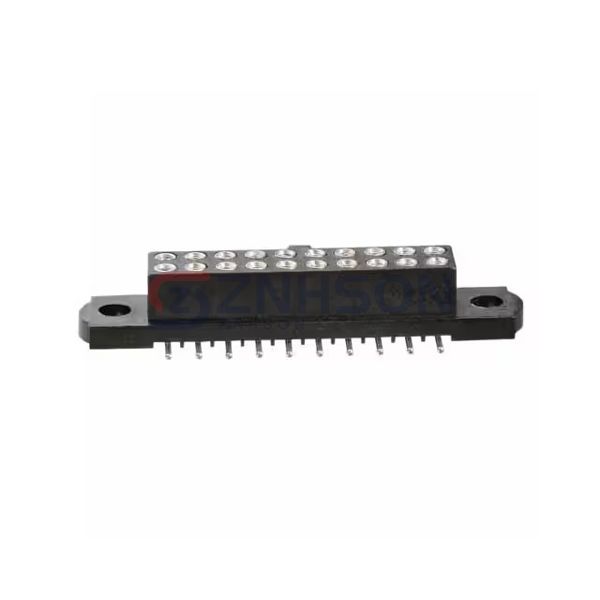

M80-4120842
Harwin Inc.
Harwin Inc.
CONN FEMALE VERT 8POS
$9.34
Available to order
Reference Price (USD)
98+
$7.90969
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with M80-4120842 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Harwin Inc. connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 8
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.220" (5.60mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 7.7mm, 7.98mm
- Ingress Protection: -
- Features: Mating Flange, Polarizing Key
- Current Rating (Amps): -
- Voltage Rating: 120V
Related Products
Mill-Max Manufacturing Corp.
311-43-135-61-001000
Preci-Dip
803-83-016-10-012101
Samtec Inc.
CLP-142-02-G-D-K
Preci-Dip
803-83-048-10-012101
Samtec Inc.
SFM-122-02-S-D-A
Mill-Max Manufacturing Corp.
853-47-046-20-001000
Mill-Max Manufacturing Corp.
311-43-104-61-001000
Mill-Max Manufacturing Corp.
315-47-102-41-001000
Preci-Dip

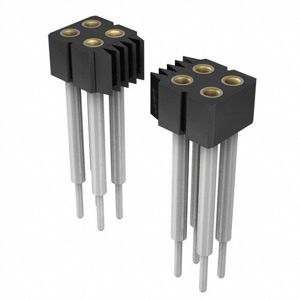

833-83-042-10-453101
