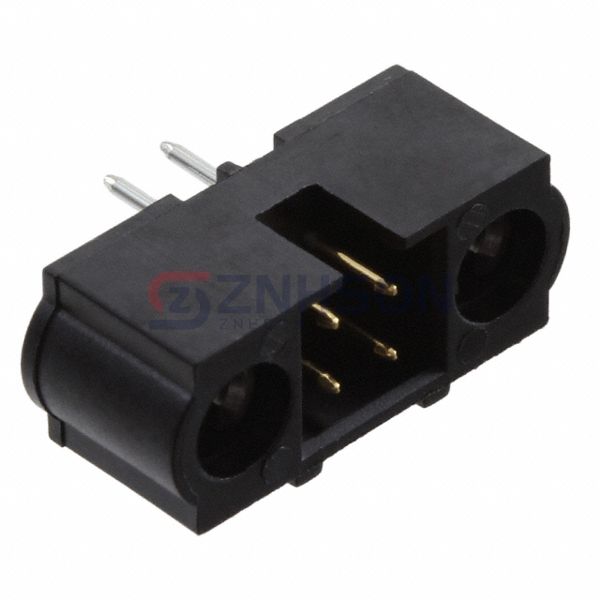

M80-5T10442MC
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 4POS 2MM
$7.28
Available to order
Reference Price (USD)
1+
$5.95000
18+
$5.71444
108+
$4.76204
504+
$4.04770
1,008+
$3.45245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5T10442MC by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M80-5T10442MC supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Turn Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange
- Operating Temperature: -55°C ~ 121°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120V
