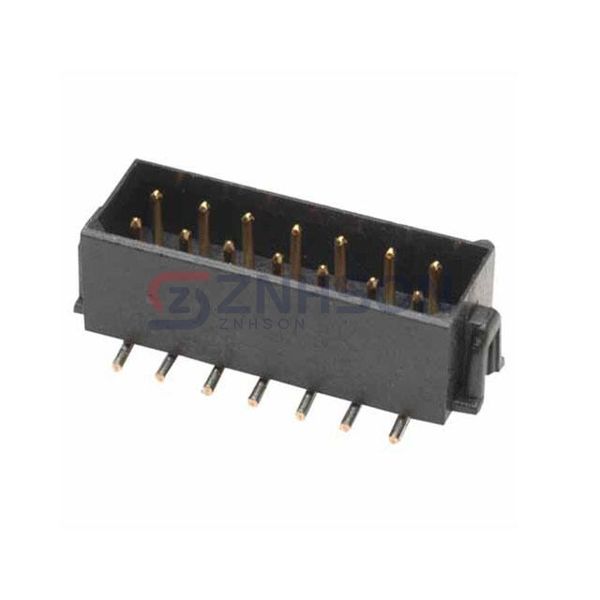

M80-8262642
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 26POS 2MM
$7.17
Available to order
Reference Price (USD)
1+
$5.69000
16+
$5.46000
104+
$4.55000
504+
$3.86750
1,000+
$3.29875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-8262642 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.205" (5.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800V
Related Products
TE Connectivity AMP Connectors
9-146278-0-21
Hirose Electric Co Ltd
DF50A-3P-1V(51)
Sullins Connector Solutions
PBC27SAGN
Samtec Inc.
MMT-115-01-TM-DH-K-TR
Samtec Inc.
TSM-115-01-TM-SV-A-P
On Shore Technology Inc.
302-R501
TE Connectivity AMP Connectors
5-103639-5

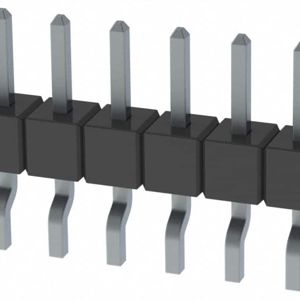

Samtec Inc.
MMT-110-01-T-SH-TR

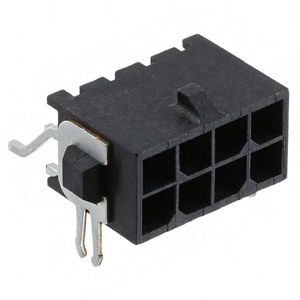

TE Connectivity AMP Connectors
