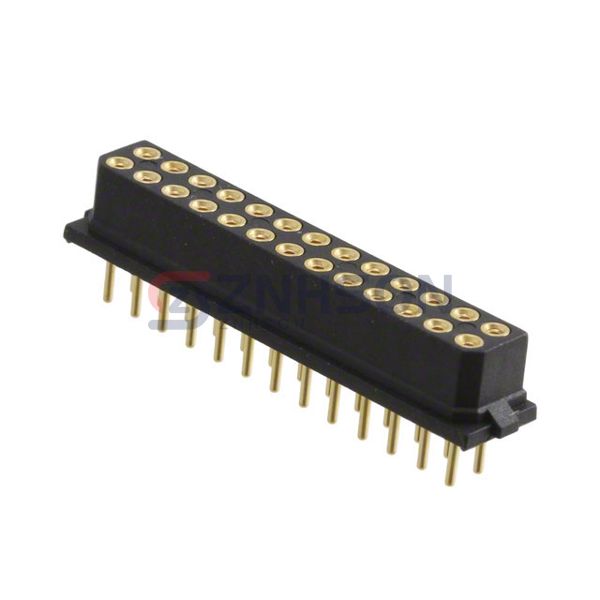

M80-8502645
Harwin Inc.
Harwin Inc.
CONN RCPT 26POS 0.079 GOLD PCB
$14.96
Available to order
Reference Price (USD)
1+
$11.75000
16+
$10.68188
104+
$9.07971
504+
$7.74444
1,000+
$7.10353
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-8502645 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Harwin Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 26
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.202" (5.14mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 7.23mm, 7.85mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 800V
Related Products
Amphenol ICC (FCI)
71609-304LF
Mill-Max Manufacturing Corp.
803-43-082-61-001000
Samtec Inc.
FLE-139-01-G-DV-P-TR
Preci-Dip
316-83-158-41-013101
Samtec Inc.
BSW-108-04-L-S
Mill-Max Manufacturing Corp.

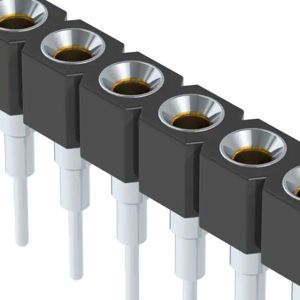

316-93-149-41-006000
Mill-Max Manufacturing Corp.

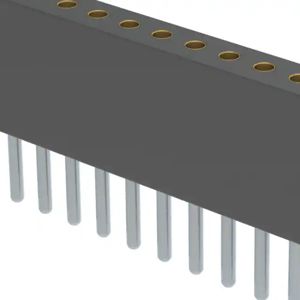

851-47-052-10-002000
Oupiin

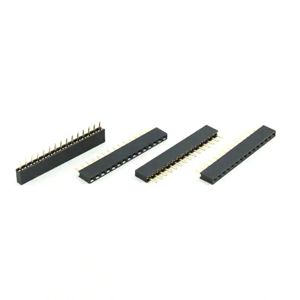

2042-1X02G00SB
TE Connectivity AMP Connectors

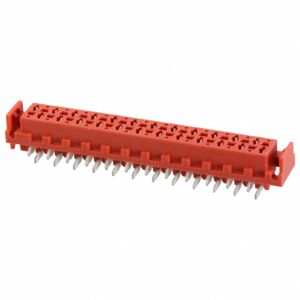

9-338069-4
