M80-8662022
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 20POS 2MM
$8.65
Available to order
Reference Price (USD)
1+
$6.79000
10+
$6.50900
100+
$5.37700
500+
$4.52800
1,000+
$3.96200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

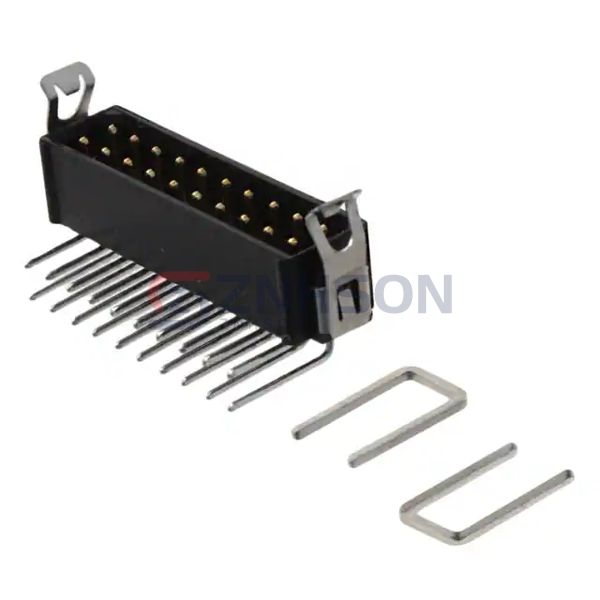

Discover the M80-8662022 rectangular connector header from Harwin Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the M80-8662022 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Harwin Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.235" (5.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Strain Relief Clips
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120V
