M80-8820342
Harwin Inc.
Harwin Inc.

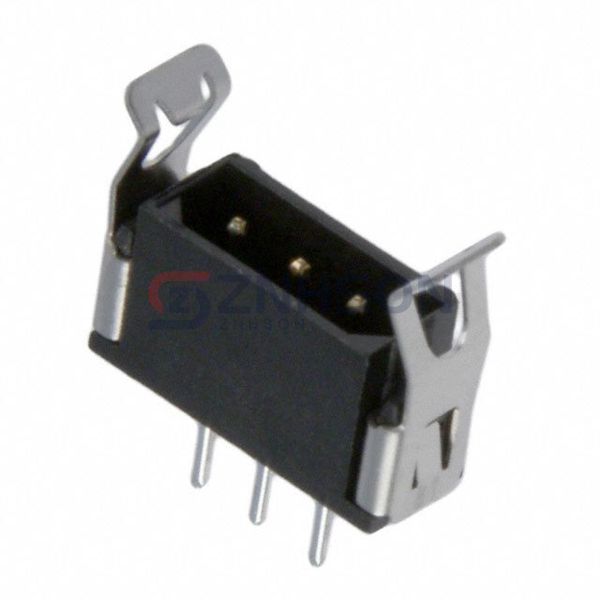

CONN HEADER VERT 3POS 2MM
$3.70
Available to order
Reference Price (USD)
1+
$2.63000
26+
$2.31000
104+
$2.10000
520+
$1.78500
1,014+
$1.52250
5,018+
$1.36500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the M80-8820342 rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the M80-8820342 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800V
