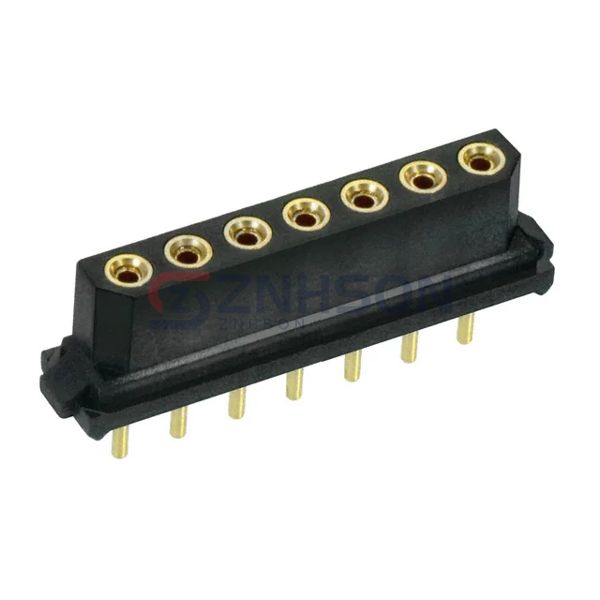

M80-8970705
Harwin Inc.
Harwin Inc.
CONN RCPT 7POS 0.079 GOLD PCB
$6.67
Available to order
Reference Price (USD)
1+
$5.45000
14+
$5.23429
112+
$4.36196
504+
$3.70770
1,008+
$3.16245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with M80-8970705 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Harwin Inc. connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 7
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.202" (5.14mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 7.23mm, 7.83mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 800V
Related Products
Samtec Inc.
RSM-120-02-S-D-LC-P
Preci-Dip
346-83-153-41-036101
Preci-Dip
831-83-007-40-001191
Samtec Inc.
CLT-126-02-S-D
Samtec Inc.
SSQ-106-01-G-D
Samtec Inc.
CLP-107-02-L-D-A-P
Samtec Inc.
TLE-114-01-G-DV-A-P-TR
Mill-Max Manufacturing Corp.
310-13-116-41-001000
Amphenol ICC (FCI)

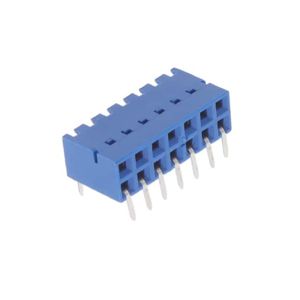

89883-307LF
