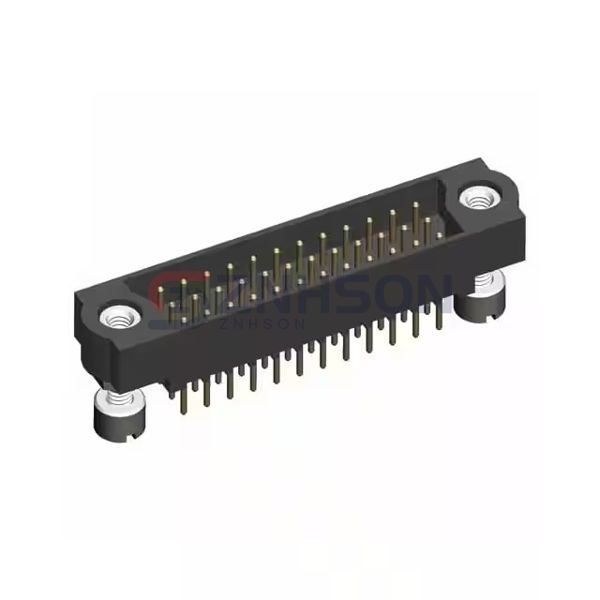

M83-LMT2M3N18-0000-000
Harwin Inc.
Harwin Inc.
3 ROW M/T M VERT J/S 18 WAY
$14.00
Available to order
Reference Price (USD)
1+
$13.99972
500+
$13.8597228
1000+
$13.7197256
1500+
$13.5797284
2000+
$13.4397312
2500+
$13.299734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the M83-LMT2M3N18-0000-000 rectangular connector header from Harwin Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the M83-LMT2M3N18-0000-000 meets the highest industry standards. Harwin Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 18
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.173" (4.40mm)
- Overall Contact Length: -
- Insulation Height: 0.238" (6.05mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120VAC/DC
