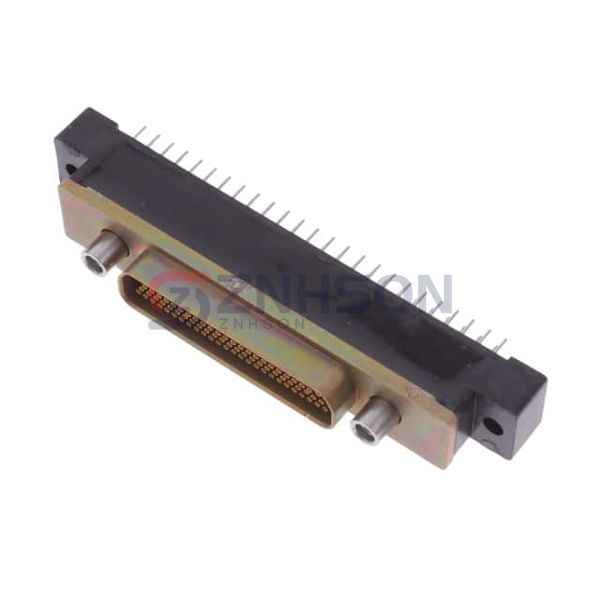

M83513/27-H01CP
Cinch Connectivity Solutions
Cinch Connectivity Solutions
100 POS RCPT STRAIGHT PCB CD PLT
$284.98
Available to order
Reference Price (USD)
1+
$284.98000
500+
$282.1302
1000+
$279.2804
1500+
$276.4306
2000+
$273.5808
2500+
$270.731
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M83513/27-H01CP from Cinch Connectivity Solutions represents the next evolution in D-Sub connector technology within our Connectors division. These high-reliability interconnects feature glass-filled thermoplastic shells for lightweight applications and include EMI/RFI filtering options. With operating temperatures from -55 C to +125 C, the M83513/27-H01CP series is perfect for oilfield instrumentation, marine navigation systems, and outdoor telecom infrastructure. The unique dual-lock design ensures positive mating retention even under extreme shock conditions, making these connectors preferred for defense applications and mobile emergency response equipment.
Specifications
- Product Status: Active
- Connector Style: D-Type, Micro-D
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 100
- Number of Rows: 4
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 0.050 Pitch x 0.050 Row to Row
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Aluminum Alloy, Yellow Chromate Plated Cadmium
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A
- Backset Spacing: -
- Features: -
