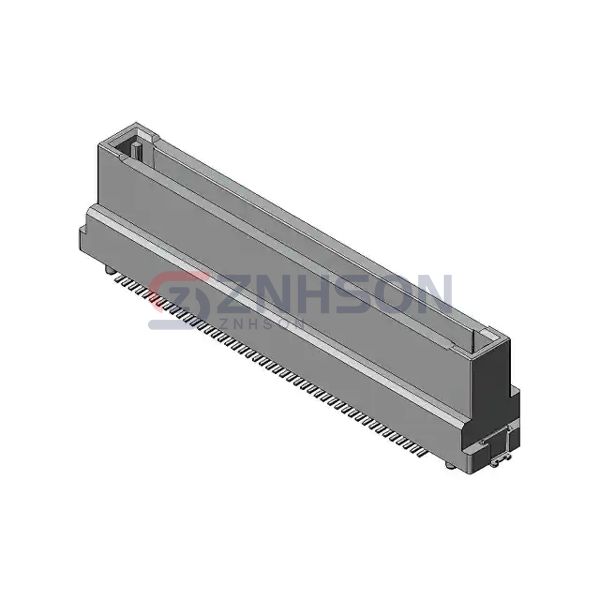

MA01R090VADBR500
JAE Electronics
JAE Electronics
CONN RIGID SIDE STR 90 POS
$6.15
Available to order
Reference Price (USD)
1+
$6.15000
500+
$6.0885
1000+
$6.027
1500+
$5.9655
2000+
$5.904
2500+
$5.8425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MA01R090VADBR500 by JAE Electronics is a high-performance rectangular connector designed for board-to-board applications. These connectors are part of the Arrays, Edge Type, and Mezzanine categories, offering reliable interconnections in compact spaces. With robust construction and precision engineering, they ensure secure and stable connections even in demanding environments. Ideal for high-density electronic assemblies, these connectors feature excellent electrical performance and durability. Common applications include telecommunications equipment, industrial automation systems, and consumer electronics. For instance, they are widely used in server motherboards, IoT devices, and automotive control units. Choose MA01R090VADBR500 for seamless connectivity and superior performance in your next project.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Outer Shroud Contacts
- Number of Positions: 90
- Pitch: 0.025" (0.64mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Board Guide, Solder Retention
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 10mm, 16mm, 22mm
- Height Above Board: 0.339" (8.60mm)
Related Products
Samtec Inc.
SEAF-20-01-S-06-1-RA-LP-K-TR
Samtec Inc.
ERM8-100-09.0-L-DV
Samtec Inc.
LSHM-110-04.0-L-DV-A-N-TR
Samtec Inc.
FSI-115-03-G-D-AD
Samtec Inc.
BSH-120-01-H-D
Samtec Inc.
QTE-020-02-L-D-A-K-TR
Samtec Inc.
QTH-090-07-C-D-A
TE Connectivity AMP Connectors

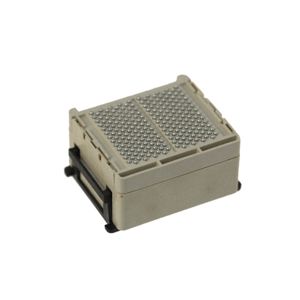

6-1761612-3
Samtec Inc.

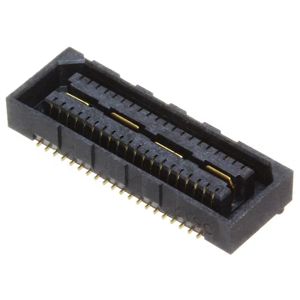

QSE-020-01-F-D-A-TR
