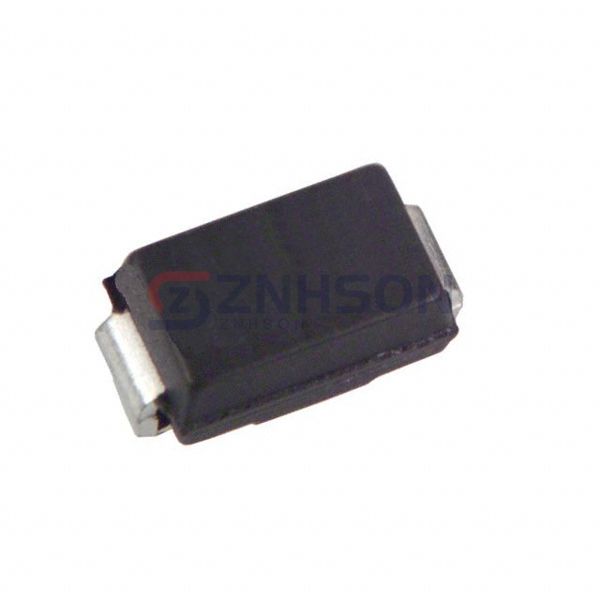

MA2Q73800L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 40V 1.5A NMINIP2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MA2Q73800L single rectifier diode by Panasonic Electronic Components, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The MA2Q73800L is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Panasonic Electronic Components's MA2Q73800L for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 50 ns
- Current - Reverse Leakage @ Vr: 2 mA @ 40 V
- Capacitance @ Vr, F: 70pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214BA
- Supplier Device Package: NMiniP2-J1
- Operating Temperature - Junction: -40°C ~ 125°C
