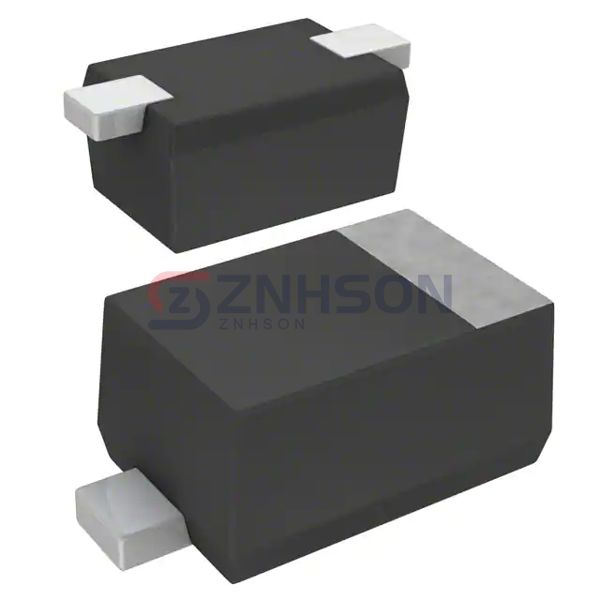

MA2SD1000L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 20V 200MA SSMINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MA2SD1000L from Panasonic Electronic Components is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panasonic Electronic Components's MA2SD1000L for superior performance and durability in demanding environments.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 470 mV @ 200 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 3 ns
- Current - Reverse Leakage @ Vr: 20 µA @ 10 V
- Capacitance @ Vr, F: 25pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SSMini2-F1
- Operating Temperature - Junction: 125°C (Max)
