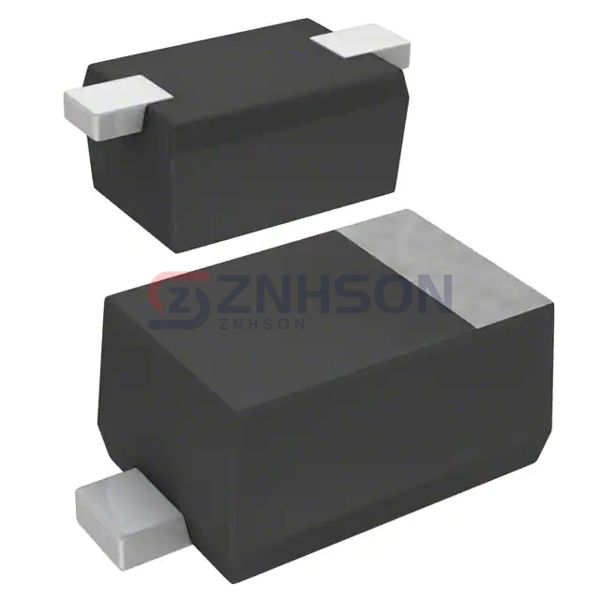

MA2Z78400L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 30V 100MA SMINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MA2Z78400L from Panasonic Electronic Components is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Panasonic Electronic Components's dedication to quality means the MA2Z78400L meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 100mA
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 2 ns
- Current - Reverse Leakage @ Vr: 15 µA @ 30 V
- Capacitance @ Vr, F: 20pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SMini2-F1
- Operating Temperature - Junction: 125°C (Max)
