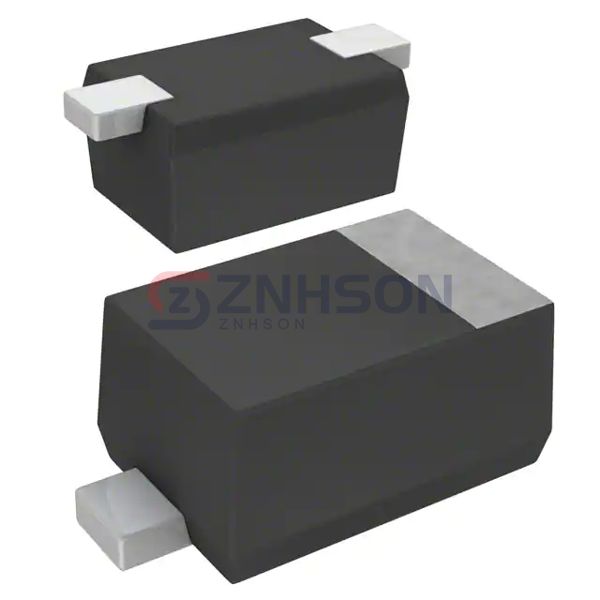

MA2ZD1800L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 20V 500MA SMINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MA2ZD1800L by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the MA2ZD1800L ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 500mA
- Voltage - Forward (Vf) (Max) @ If: 420 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 7 ns
- Current - Reverse Leakage @ Vr: 200 µA @ 20 V
- Capacitance @ Vr, F: 100pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SMini2-F1
- Operating Temperature - Junction: 125°C (Max)
