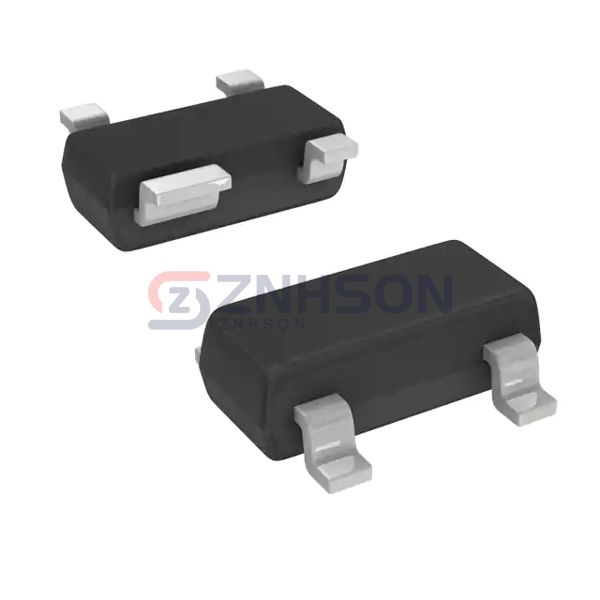

MA4X16000L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE ARRAY GP 40V 100MA MINI4
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MA4X16000L by Panasonic Electronic Components represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panasonic Electronic Components's patented junction design, the MA4X16000L achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 2 Independent
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 100mA
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 3 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 35 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-253-4, TO-253AA
- Supplier Device Package: Mini4-G1
Related Products
Panjit International Inc.
BAV70-AU_R1_000A1
Panjit International Inc.
MBR2040FCT_T0_00001
Vishay General Semiconductor - Diodes Division
VS-VSKC91/06
Diodes Incorporated
BAT54DW-7-F
Panjit International Inc.
UF2004CT_T0_00001
onsemi
MBRF20H150CTG
Vishay General Semiconductor - Diodes Division

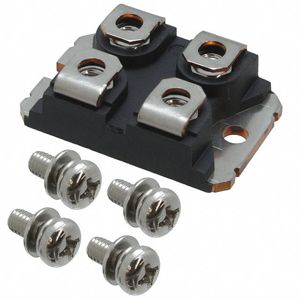

VS-UFL230FA60
onsemi
MBRB41H100CTT4G
SMC Diode Solutions

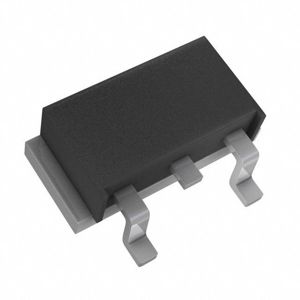

83CNQ080SL
