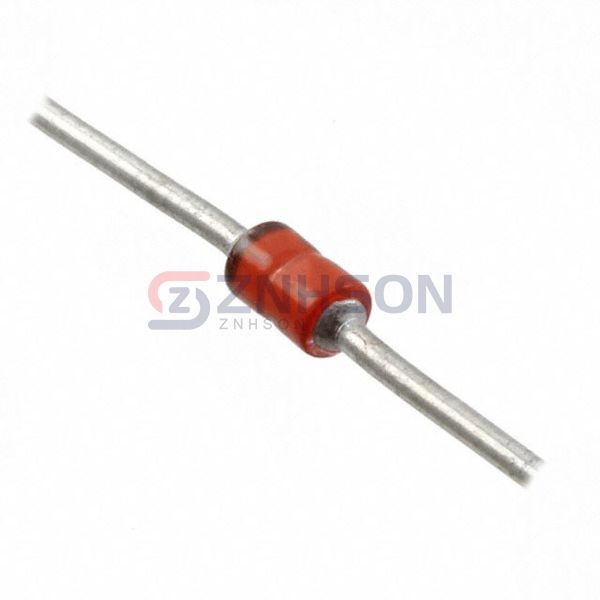

MAP4KE56AE3
Microchip Technology
Microchip Technology
TVS DIODE 47.8VWM 77VC DO204AL
$7.62
Available to order
Reference Price (USD)
1+
$7.62000
500+
$7.5438
1000+
$7.4676
1500+
$7.3914
2000+
$7.3152
2500+
$7.239
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the MAP4KE56AE3 TVS diode by Microchip Technology. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the MAP4KE56AE3 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the MAP4KE56AE3 can shield HDMI ports in consumer electronics from voltage surges. Trust Microchip Technology's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 47.8V
- Voltage - Breakdown (Min): 53.2V
- Voltage - Clamping (Max) @ Ipp: 77V
- Current - Peak Pulse (10/1000µs): 5.2A
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
Related Products
Taiwan Semiconductor Corporation
BZW04-17H
Littelfuse Inc.
20KPA48A-B
Taiwan Semiconductor Corporation
SMAJ12CH
Vishay General Semiconductor - Diodes Division
3KASMC16AHE3_B/H
Diodes Incorporated
SMAJ14CA-13-F
SMC Diode Solutions
SMDA12C
Littelfuse Inc.

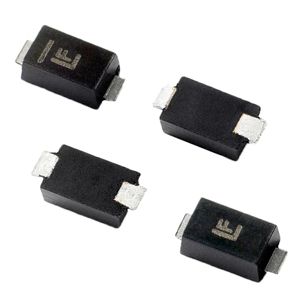

SMF4L15CA
MDE Semiconductor Inc
MLCE18
Littelfuse Inc.

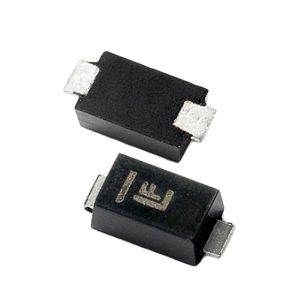

TPSMF4L70A
