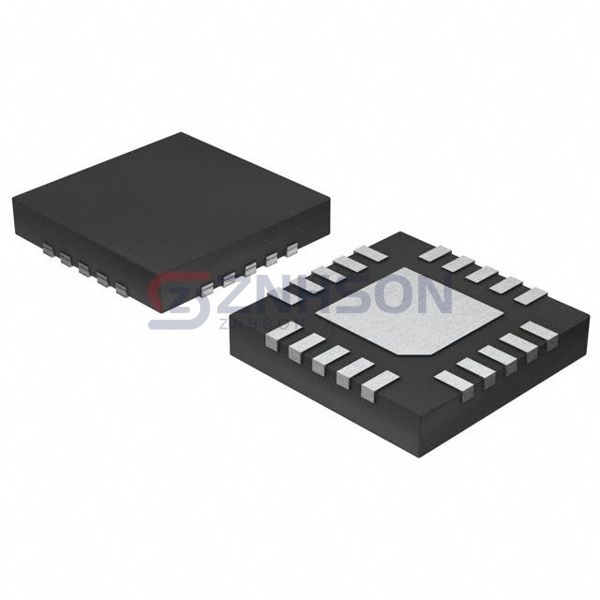

MAX14777GTP+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 20TQFN
$6.47
Available to order
Reference Price (USD)
1+
$6.47000
500+
$6.4053
1000+
$6.3406
1500+
$6.2759
2000+
$6.2112
2500+
$6.1465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's MAX14777GTP+T, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The MAX14777GTP+T meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm (Max)
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 40µs, 100µs
- -3db Bandwidth: 380MHz
- Charge Injection: 225pC
- Channel Capacitance (CS(off), CD(off)): 12pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -101dB @ 100kHz
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad
- Supplier Device Package: 20-TQFN (4x4)
