MAX14802CCM+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH SPST 48LQFP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX14802CCM+T by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX14802CCM+T is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 16
- On-State Resistance (Max): 48Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 40V ~ 250V
- Voltage - Supply, Dual (V±): ±160
- Switch Time (Ton, Toff) (Max): 3.5µs, 3.5µs
- -3db Bandwidth: 20MHz
- Charge Injection: 820pC
- Channel Capacitance (CS(off), CD(off)): 11pF
- Current - Leakage (IS(off)) (Max): 2µA
- Crosstalk: -80dB @ 5MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount

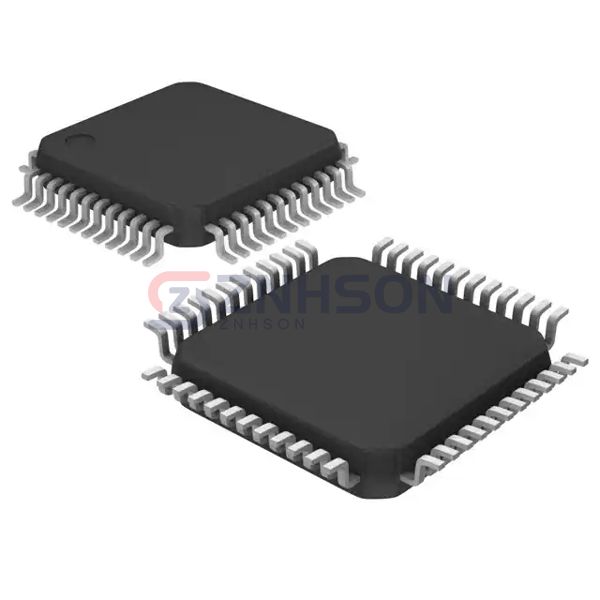

- Package / Case: 48-LQFP
- Supplier Device Package: 48-LQFP (7x7)
