MAX313CSE+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 16SOIC
$12.96
Available to order
Reference Price (USD)
1+
$8.14000
10+
$7.48500
50+
$7.17440
100+
$6.92500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MAX313CSE+ - Analog Devices Inc./Maxim Integrated's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The MAX313CSE+ enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 30V
- Voltage - Supply, Dual (V±): ±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max): 225ns, 185ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 15pF, 15pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Analog Devices Inc./Maxim Integrated
MAX303CSE+
Analog Devices Inc./Maxim Integrated
DG403DY+T
NXP Semiconductors
74HC2G66GD,125
Texas Instruments
CD74HCT4066MT
Harris Corporation
IH5018CPA
onsemi
M74HCT4052ADTR2G
Analog Devices Inc.
ADG804YRMZ-REEL
onsemi
MC14551BDG
Texas Instruments

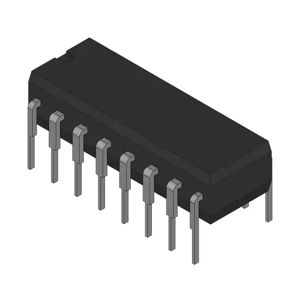

CD74HC4052NS
