MAX314EPE
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

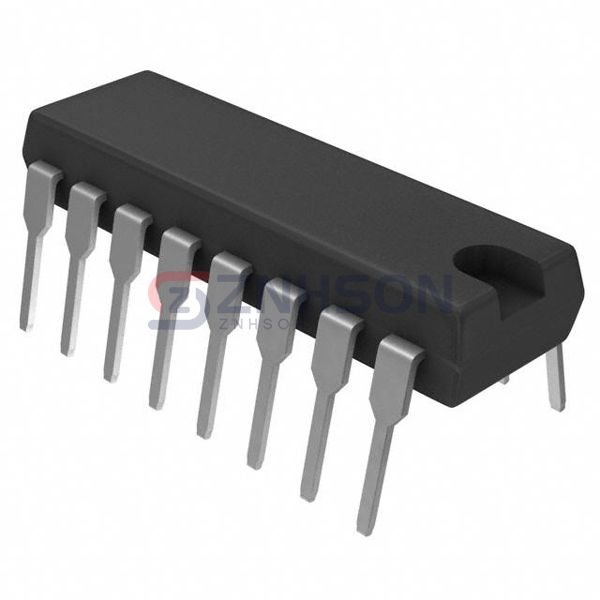

IC SWITCH ANLG SPST CMOS 16DIP
$5.05
Available to order
Reference Price (USD)
1+
$5.05000
500+
$4.9995
1000+
$4.949
1500+
$4.8985
2000+
$4.848
2500+
$4.7975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX314EPE by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX314EPE is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 30V
- Voltage - Supply, Dual (V±): ±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max): 225ns, 185ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 15pF, 15pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 16-DIP (0.300", 7.62mm)
- Supplier Device Package: 16-PDIP
