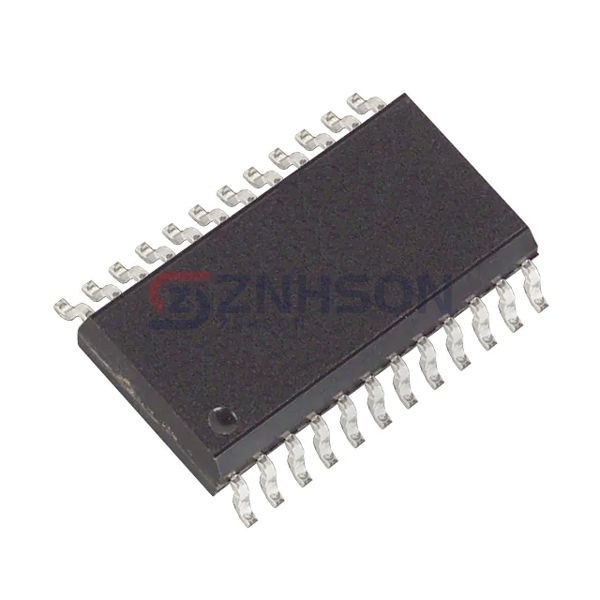

MAX389CWG
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER DUAL 4X1 24SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX389CWG by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX389CWG is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 3kOhm
- Channel-to-Channel Matching (ΔRon): 300Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 1.5µs, 1µs
- -3db Bandwidth: -
- Charge Injection: 55pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 25pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 24-SOIC
Related Products
Vishay Siliconix
DG418LEDY-GE3
Analog Devices Inc./Maxim Integrated
MAX4729EXT+
Analog Devices Inc./Maxim Integrated
MAX4535CSD
Vishay Siliconix
DG409LDY-E3
Diodes Incorporated

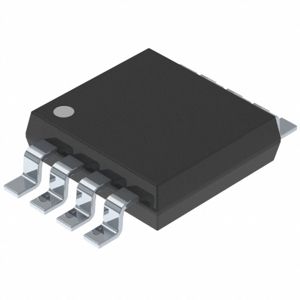

PS301CUA
