MAX394CAP+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

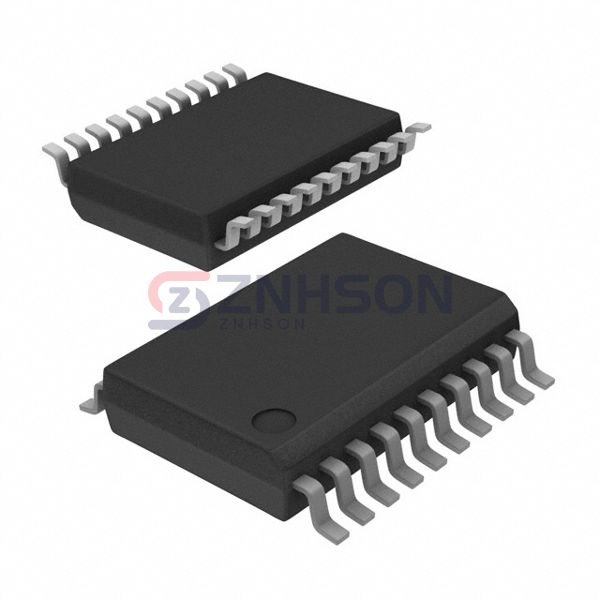

IC SWITCH QUAD SPDT 20SSOP
$7.87
Available to order
Reference Price (USD)
1+
$7.89000
10+
$7.25500
66+
$6.95409
132+
$6.71250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX394CAP+ from Analog Devices Inc./Maxim Integrated is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The MAX394CAP+ is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 35Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2.7V ~ 15V
- Voltage - Supply, Dual (V±): ±2.7V ~ 8V
- Switch Time (Ton, Toff) (Max): 130ns, 75ns
- -3db Bandwidth: -
- Charge Injection: 5pC
- Channel Capacitance (CS(off), CD(off)): 12pF, 12pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -88dB @ 1MHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 20-SSOP
