MAX4066EPD
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

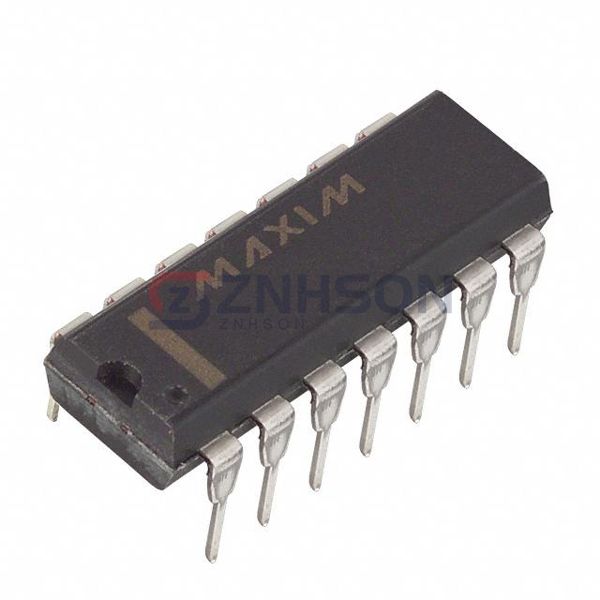

IC SW QUAD ANLG SPST CMOS 14-DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4066EPD from Analog Devices Inc./Maxim Integrated's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MAX4066EPD is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 45Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2V ~ 16V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 100ns, 75ns
- -3db Bandwidth: 100MHz
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 9pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -86dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
