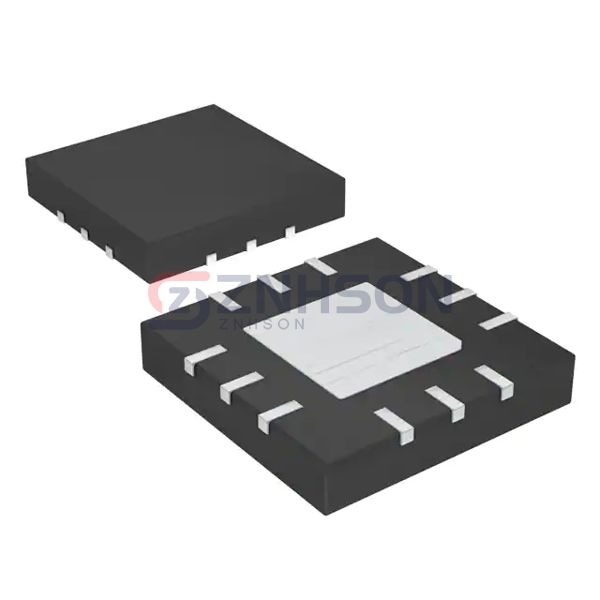

MAX4734EGC+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 4X1 12QFN
$0.00
Available to order
Reference Price (USD)
2,500+
$1.63750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4734EGC+T represents Analog Devices Inc./Maxim Integrated's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 1
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.6V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 25ns, 20ns
- -3db Bandwidth: 90MHz
- Charge Injection: 60pC
- Channel Capacitance (CS(off), CD(off)): 33pF, 117pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -56dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-VFQFN Exposed Pad
- Supplier Device Package: 12-QFN (3x3)
Related Products
Diodes Incorporated
PI5A23159UEX
Analog Devices Inc./Maxim Integrated
DG417DJ
Analog Devices Inc.
MUX08FS-REEL
Analog Devices Inc./Maxim Integrated
MAX9152EUE
Diodes Incorporated

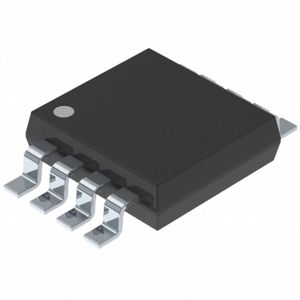

PS323CUAEX
