MAX6329SHUT+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC REG LIN POS ADJ 150MA SOT23-6
$4.11
Available to order
Reference Price (USD)
2,500+
$1.89050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX6329SHUT+T from Analog Devices Inc./Maxim Integrated is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Adjustable (Fixed)
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.23V (3.3V)
- Voltage - Output (Max): 5V
- Voltage Dropout (Max): 0.36V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 50 µA
- Current - Supply (Max): -
- PSRR: -
- Control Features: Enable, Reset
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: 0°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-6
Related Products
ABLIC Inc.
S-1333D1J-M5T1U3
onsemi
NCV47711DAJR2G
Texas Instruments
TPS71229DRCT
Microchip Technology
MIC5303-1.3YMT-TR
Texas Instruments
TPS7A0510PDQNT
ABLIC Inc.
S-1323B25PF-N8KTFU
Nisshinbo Micro Devices Inc.

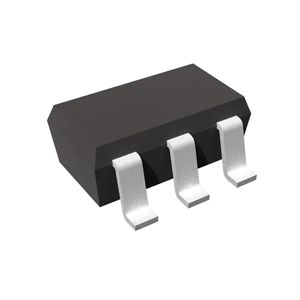

RP170N381B-TR-FE
Torex Semiconductor Ltd

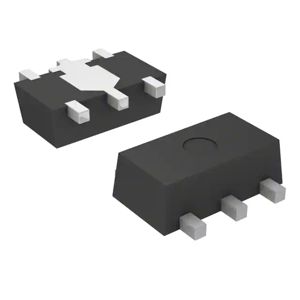

XC6220B28BPR-G
