MAX8559ETAM1+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC REG LINEAR 2.7V/1.85V 8TDFN
$1.18
Available to order
Reference Price (USD)
1+
$1.18000
500+
$1.1682
1000+
$1.1564
1500+
$1.1446
2000+
$1.1328
2500+
$1.121
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX8559ETAM1+ from Analog Devices Inc./Maxim Integrated is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the MAX8559ETAM1+ provides the reliability you need.
As a member of the PMIC - Voltage Regulators - Linear family, the MAX8559ETAM1+ excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications.
The MAX8559ETAM1+ is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 2.7V, 1.85V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -, 0.12V @ 100mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 290 µA
- Current - Supply (Max): 220 µA
- PSRR: 70dB ~ 54dB (10kHz ~ 100kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-TDFN (3x3)
Related Products
Analog Devices Inc.
ADP7118ACPZN1.8-R7
ABLIC Inc.
S-1711A1830-I6T1U
National Semiconductor
LM2931AS-5.0
onsemi
MC7812ACTG
Nisshinbo Micro Devices Inc.

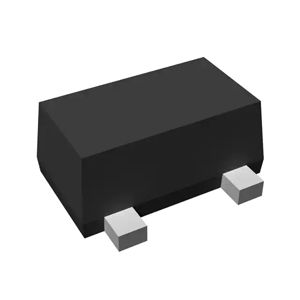

R1100D321C-TR-F
Microchip Technology
MIC5237-2.5YU-TR
onsemi
NCP582LXV29T2G
onsemi

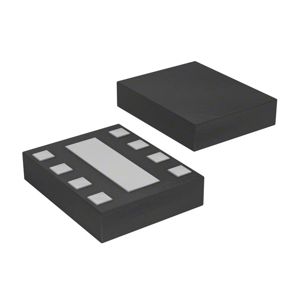

NCP706BMX300TAG
Nisshinbo Micro Devices Inc.

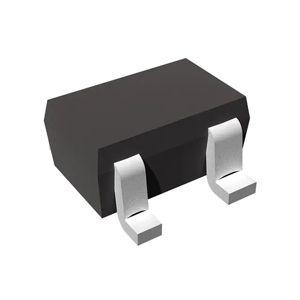

RP130Q491D-TR-FE
