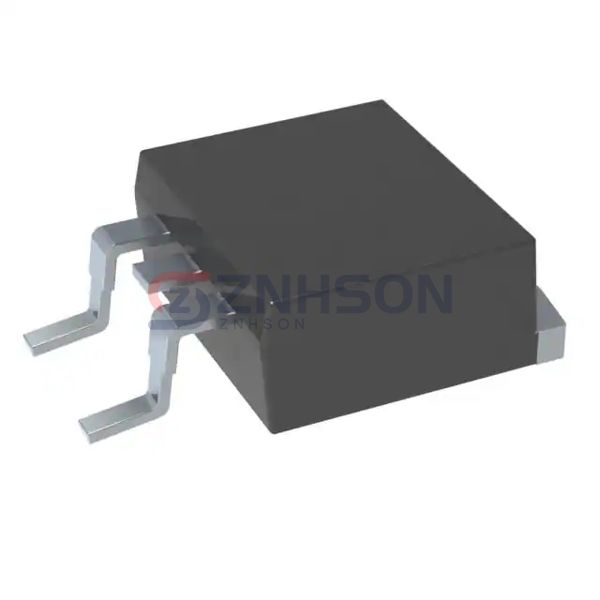

MBR10200DC_R2_00001
Panjit International Inc.
Panjit International Inc.
D PAK SURFACE MOUNT SCHOTTKY BAR
$0.95
Available to order
Reference Price (USD)
1+
$0.95000
500+
$0.9405
1000+
$0.931
1500+
$0.9215
2000+
$0.912
2500+
$0.9025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MBR10200DC_R2_00001 rectifier array from Panjit International Inc. redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Panjit International Inc.'s precision manufacturing ensures each MBR10200DC_R2_00001 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 200 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
