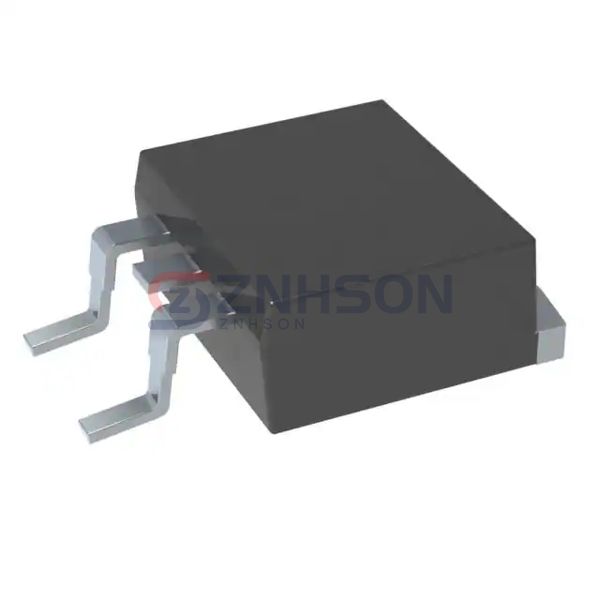

MBR1060DC_R2_00001
Panjit International Inc.
Panjit International Inc.
D PAK SURFACE MOUNT SCHOTTKY BAR
$0.78
Available to order
Reference Price (USD)
1+
$0.78000
500+
$0.7722
1000+
$0.7644
1500+
$0.7566
2000+
$0.7488
2500+
$0.741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MBR1060DC_R2_00001 from Panjit International Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Panjit International Inc.'s MBR1060DC_R2_00001 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io) (per Diode): 10A
- Voltage - Forward (Vf) (Max) @ If: 750 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 60 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
