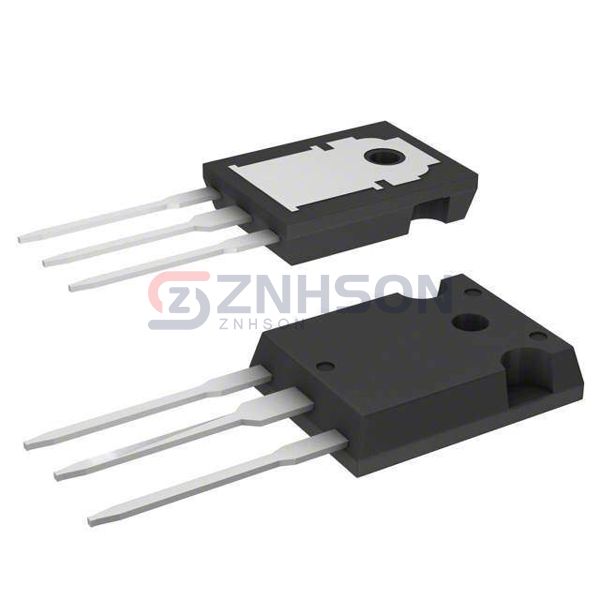

MBR120150WT
SMC Diode Solutions
SMC Diode Solutions
DIODE ARRAY SCHOTTKY 150V TO247
$3.93
Available to order
Reference Price (USD)
1+
$2.94000
25+
$2.41000
100+
$2.19080
500+
$1.75266
1,000+
$1.48976
2,500+
$1.44595
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MBR120150WT by SMC Diode Solutions represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With SMC Diode Solutions's patented junction design, the MBR120150WT achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io) (per Diode): 60A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 60 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 2 mA @ 150 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
