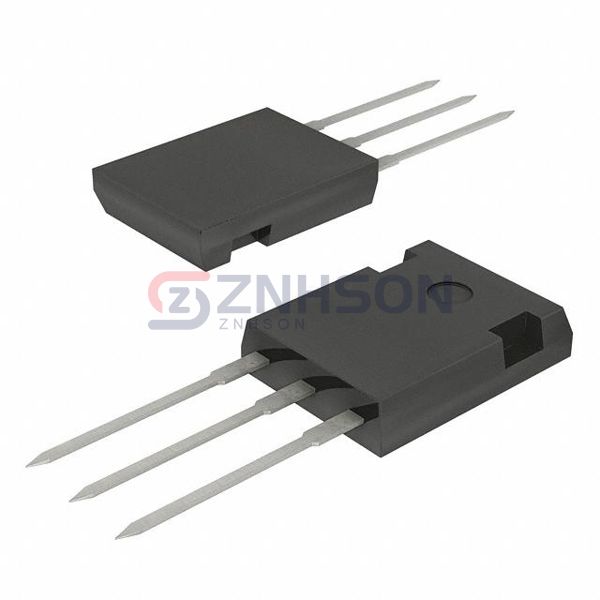

MBR2060PT
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTTKY 60V TO247AD
$1.54
Available to order
Reference Price (USD)
1+
$1.53923
500+
$1.5238377
1000+
$1.5084454
1500+
$1.4930531
2000+
$1.4776608
2500+
$1.4622685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MBR2060PT by Taiwan Semiconductor Corporation represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Taiwan Semiconductor Corporation's patented junction design, the MBR2060PT achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 60 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD (TO-3P)
Related Products
SMC Diode Solutions
400CMQ035
STMicroelectronics
STPS15L45CB
IXYS
DSEC16-12AS-TUB
Micro Commercial Co
MURS1660FCTA-BP
GeneSiC Semiconductor
MBR600100CTR
Micro Commercial Co
BAT54TW-TP
Vishay General Semiconductor - Diodes Division
VT1045C-M3/4W
Diodes Incorporated
BAW56HDWQ-13
Vishay General Semiconductor - Diodes Division

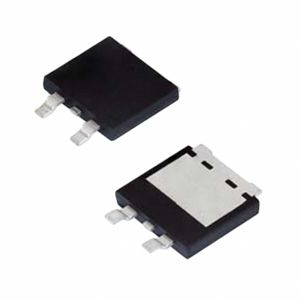

VS-16CDU06-M3/I
