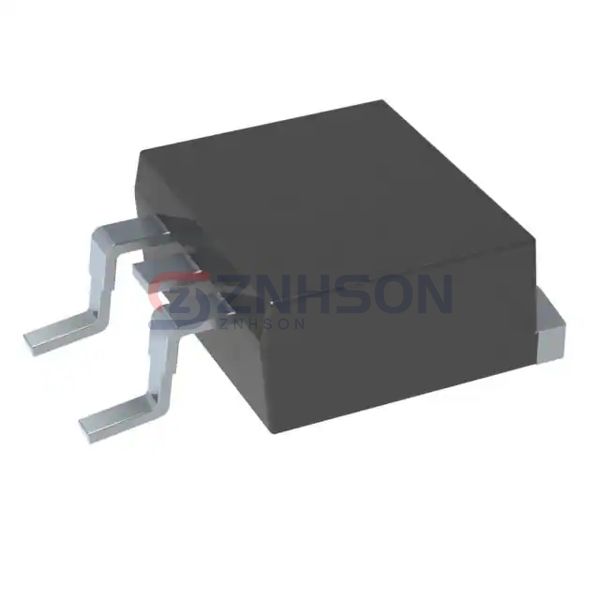

MBR840DC_R2_00001
Panjit International Inc.
Panjit International Inc.
D PAK SURFACE MOUNT SCHOTTKY BAR
$0.95
Available to order
Reference Price (USD)
1+
$0.95000
500+
$0.9405
1000+
$0.931
1500+
$0.9215
2000+
$0.912
2500+
$0.9025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MBR840DC_R2_00001 by Panjit International Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panjit International Inc.'s patented junction design, the MBR840DC_R2_00001 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 8A
- Voltage - Forward (Vf) (Max) @ If: 700 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 40 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
