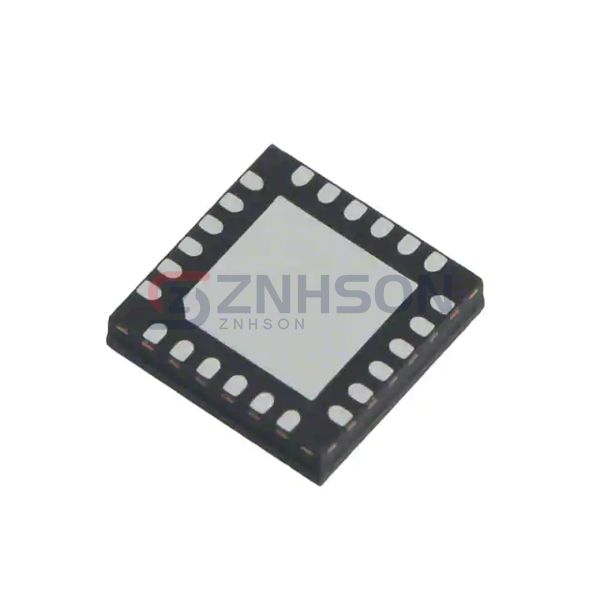

MC09XS3400AFKR2
NXP USA Inc.
NXP USA Inc.
IC PWR SWITCH N-CHAN 1:1 24PQFN
$0.00
Available to order
Reference Price (USD)
1,200+
$4.44501
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MC09XS3400AFKR2 Load Driver IC by NXP USA Inc. is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the MC09XS3400AFKR2 delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose NXP USA Inc. for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Obsolete
- Switch Type: General Purpose
- Number of Outputs: 4
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: SPI
- Voltage - Load: 6V ~ 20V
- Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V
- Current - Output (Max): -
- Rds On (Typ): 9mOhm
- Input Type: -
- Features: Internal PWM, Slew Rate Controlled, Watchdog Timer
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 24-PQFN (12x12)
- Package / Case: 24-PowerQFN
