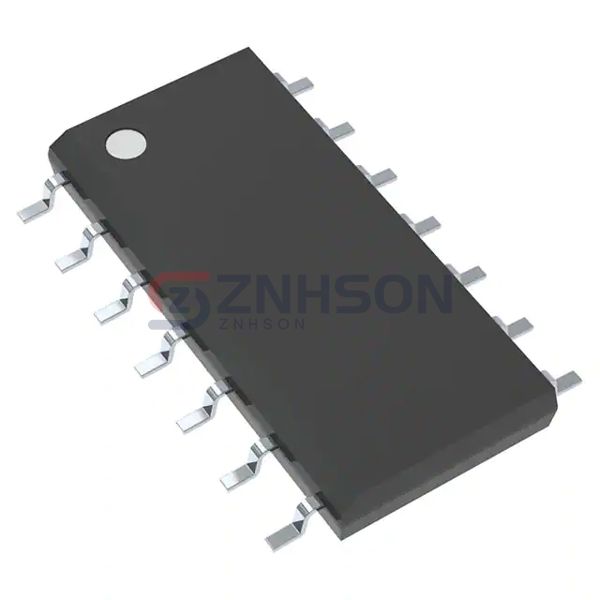

MC74ACT00DR2G
onsemi
onsemi
IC GATE NAND 4CH 2-INP 14SOIC
$0.62
Available to order
Reference Price (USD)
1+
$0.62000
500+
$0.6138
1000+
$0.6076
1500+
$0.6014
2000+
$0.5952
2500+
$0.589
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's MC74ACT00DR2G exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The MC74ACT00DR2G is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): 4 µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
