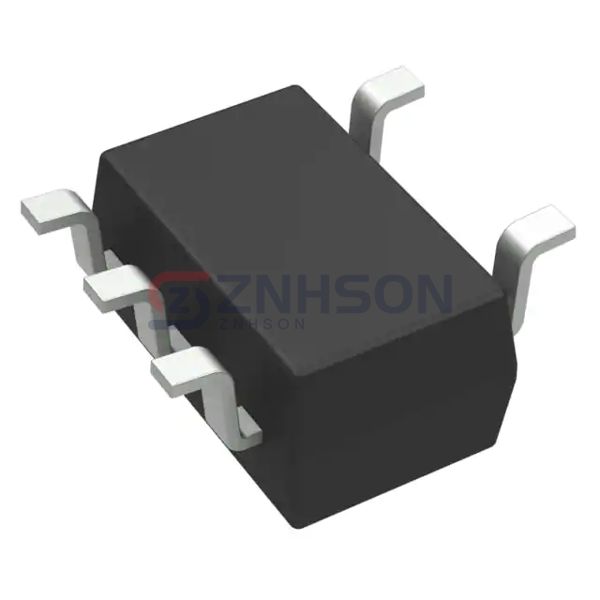

MC74VHC1G00DTT1
onsemi
onsemi
IC GATE NAND 1CH 2-INP 5TSOP
$0.05
Available to order
Reference Price (USD)
1+
$0.05000
500+
$0.0495
1000+
$0.049
1500+
$0.0485
2000+
$0.048
2500+
$0.0475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's MC74VHC1G00DTT1 exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The MC74VHC1G00DTT1 is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.5V ~ 1.65V
- Logic Level - High: 1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 5-TSOP
- Package / Case: SOT-23-5 Thin, TSOT-23-5
