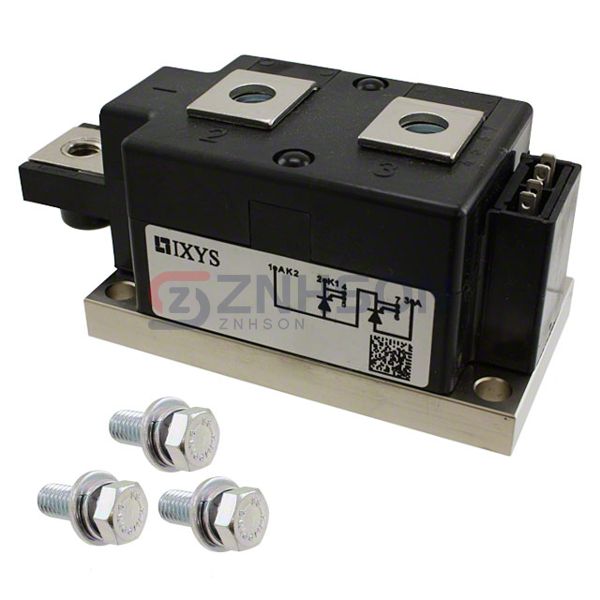

MCD224-22IO1
IXYS
IXYS
MOD THYRISTOR/DIODE 2200V Y1-CU
$213.43
Available to order
Reference Price (USD)
3+
$193.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCD224-22IO1 Thyristors - SCRs - Modules by IXYS offer exceptional performance and reliability in discrete semiconductor applications. Designed for high-power switching and control, these modules are commonly used in electric vehicle powertrains, grid-tie inverters, and heavy machinery. With excellent thermal stability and high surge current capacity, they ensure consistent operation under demanding conditions. IXYS's dedication to quality and innovation makes these SCR modules a trusted choice for engineers and designers worldwide. Upgrade your systems with these high-performance components today.
Specifications
- Product Status: Active
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 2.2 kV
- Current - On State (It (AV)) (Max): 240 A
- Current - On State (It (RMS)) (Max): 400 A
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 8000A, 8500A
- Current - Hold (Ih) (Max): 200 mA
- Operating Temperature: -40°C ~ 140°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Y1-CU
