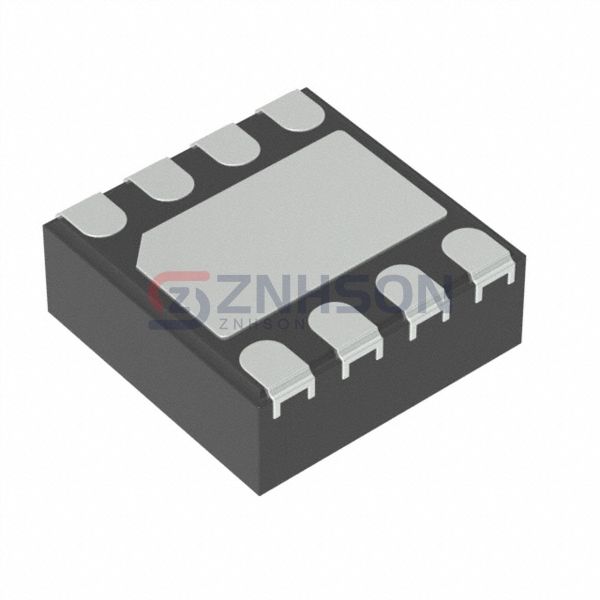

MCP14A0302T-E/KBA
Microchip Technology
Microchip Technology
IC GATE DRVR HI/LOW SIDE 8WDFN
$1.11
Available to order
Reference Price (USD)
3,000+
$0.63860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCP14A0302T-E/KBA PMIC - Gate Driver by Microchip Technology sets new benchmarks for intelligent power device control. As part of the ICs family, this solution incorporates digital input interfaces (PWM, SPI) alongside analog fault monitoring pins. Its standout attributes are: 1) 12ns typical propagation delay matching, 2) -40 C to +150 C junction temperature range, and 3) configurable soft-turnoff during overcurrent events. Dominant market applications encompass 5G base station PAs, MRI gradient amplifiers, and hydrogen fuel cell converters. A case in point: Siemens' latest wind turbine converters leverage MCP14A0302T-E/KBA-equivalent drivers to achieve 99.2% availability in offshore conditions, thanks to conformal coating against salt spray corrosion.
Specifications
- Product Status: Active
- Driven Configuration: High-Side or Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 3A, 3A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 13ns, 12ns
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-WDFN (2x2)
Related Products
Texas Instruments
UCC27211DRMT
Microchip Technology
MCP14E6-E/SN
Texas Instruments

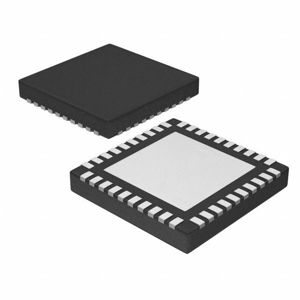

DRV8304SRHAR
Analog Devices Inc.

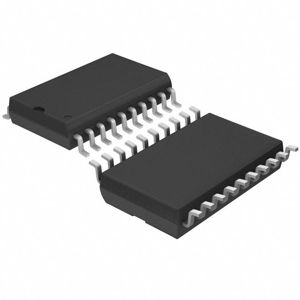

LT1161CSW#PBF
