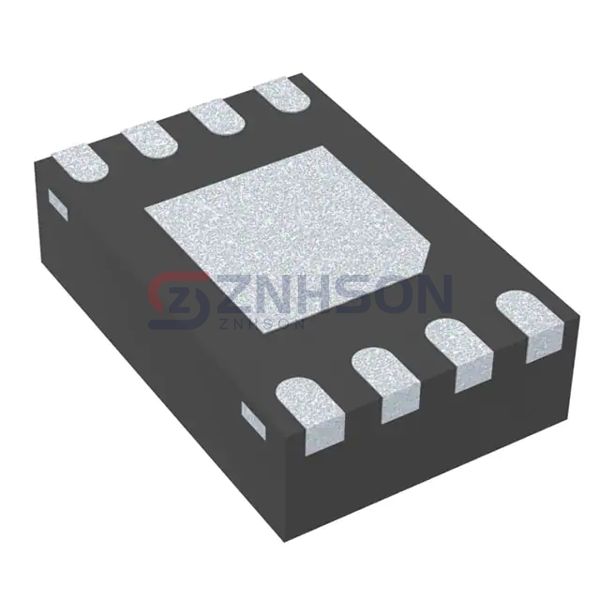

MCP1755T-1802E/MC

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LINEAR 1.8V 300MA 8DFN

Datasheet:

MCP1755T-1802E/MC Datasheet

$0.78

Available to order

Reference Price (USD)

3,300+

$0.52788

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The MCP1755T-1802E/MC from Microchip Technology is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 16V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.5V @ 300mA
Current - Output: 300mA
Current - Quiescent (Iq): 100 µA
Current - Supply (Max): 400 µA
PSRR: 80dB (1kHz)
Control Features: Enable, Power Good
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-VFDFN Exposed Pad
Supplier Device Package: 8-DFN (2x3)
