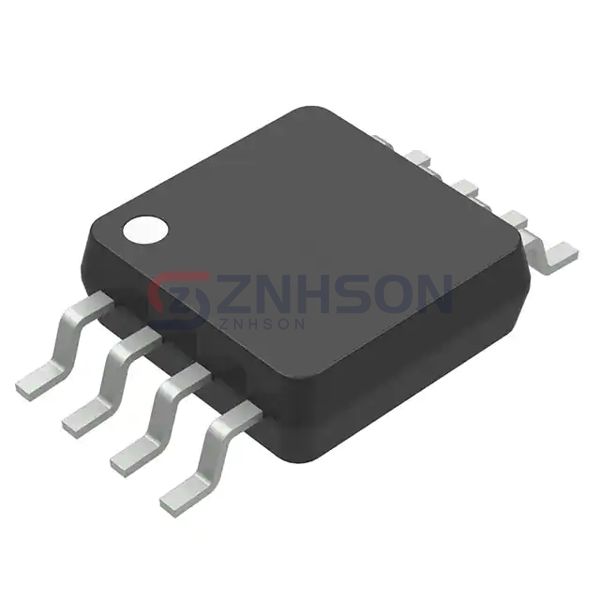

MCP6542-E/MS
Microchip Technology
Microchip Technology
IC COMP 1.6V DUAL P-P 8MSOP
$0.74
Available to order
Reference Price (USD)
1+
$0.59000
25+
$0.49440
100+
$0.45320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MCP6542-E/MS represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the MCP6542-E/MS's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 2
- Output Type: CMOS, Push-Pull, Rail-to-Rail, TTL
- Voltage - Supply, Single/Dual (±): 1.6V ~ 5.5V
- Voltage - Input Offset (Max): 7mV @ 5.5V
- Current - Input Bias (Max): 1pA @ 5.5V
- Current - Output (Typ): -
- Current - Quiescent (Max): 1µA
- CMRR, PSRR (Typ): 70dB CMRR, 80dB PSRR
- Propagation Delay (Max): 8µs
- Hysteresis: 6.5mV
- Operating Temperature: -40°C ~ 125°C
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-MSOP
