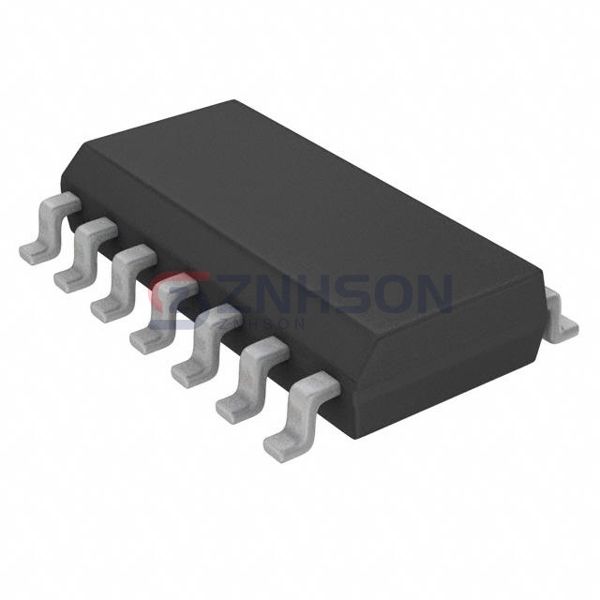

MCP6549T-I/SL
Microchip Technology
Microchip Technology
IC COMP OPENDRN 1.6V QUAD 14SOIC
$1.21
Available to order
Reference Price (USD)
2,600+
$0.94761
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MCP6549T-I/SL represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the MCP6549T-I/SL's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 4
- Output Type: CMOS, Open-Drain, Rail-to-Rail, TTL
- Voltage - Supply, Single/Dual (±): 1.6V ~ 5.5V
- Voltage - Input Offset (Max): 7mV @ 5.5V
- Current - Input Bias (Max): 1pA @ 5.5V
- Current - Output (Typ): 30mA
- Current - Quiescent (Max): 1µA
- CMRR, PSRR (Typ): 70dB CMRR, 80dB PSRR
- Propagation Delay (Max): 8µs
- Hysteresis: 6.5mV
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
Related Products
Fairchild Semiconductor
KA339A
Analog Devices Inc./Maxim Integrated
MAX991EUA+
Rohm Semiconductor
BU5265HFV-TR
Analog Devices Inc./Maxim Integrated
MXL1016IN8
ABLIC Inc.
S-89230BC-I8T1U
Analog Devices Inc./Maxim Integrated
MAX9692ESE+
Nisshinbo Micro Devices Inc.

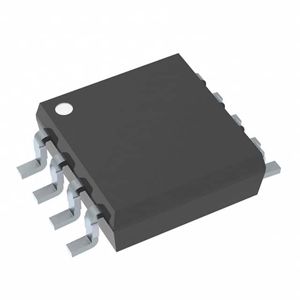

NJM2903CRB1-TE1
Rohm Semiconductor

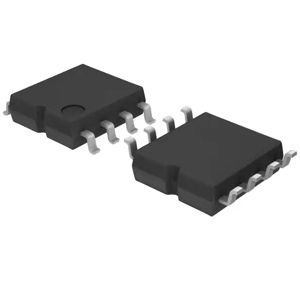

LM393F-GE2
